6 STATION SPECIAL BOLT PART FORMER BP-SERIES

6 STATION SPECIAL BOLT PART FORMER BP-SERIES
  • Features
  • Specification
  • Video

Features

  • P.K.O MECHANISM
    A. BP19B-6S

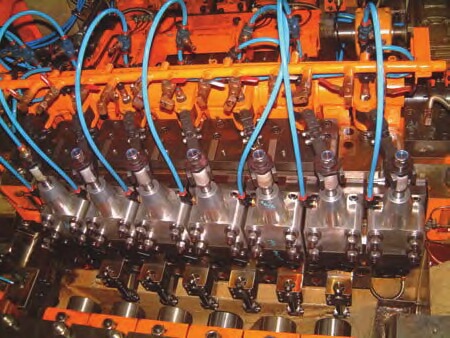

    P.K.O MECHANISM:

    Newly patented design; PKO stroke can be individually adjusted simply setting on each station, the P.K.O cam with 3 positions, tools change can be done in short time.

  • TRANSFER CHUCK FINGER MECHANISM
    B. BP19B-6S

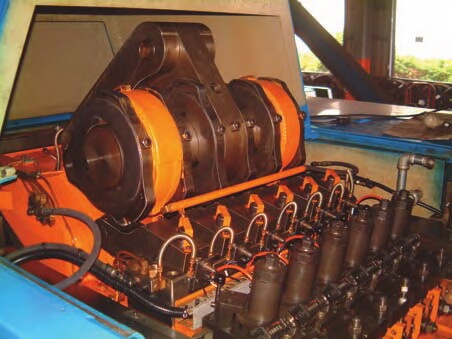

    TRANSFER CHUCK FINGER MECHANISM:

    I-TYPE transfer housing combine with Rotation type, the chuck finger enables to turn 180° or not. In this system, it can be used lifting type finger for large head parts produce.

  • KICK-OUT MECHANISM
    C. BP19B-6S

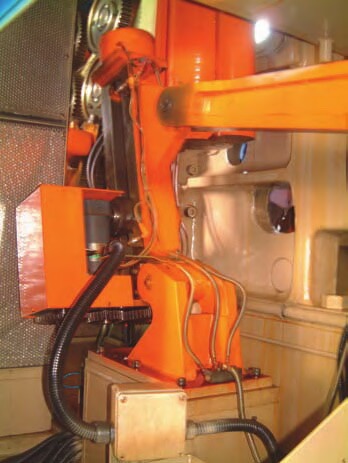

    KICK-OUT MECHANISM:

    According to customer’s need, K.O. length position can be adjusted by hand wheel system or motor control.(Optional)

  • PFAS MECHANISM
    D. BP19B-6S

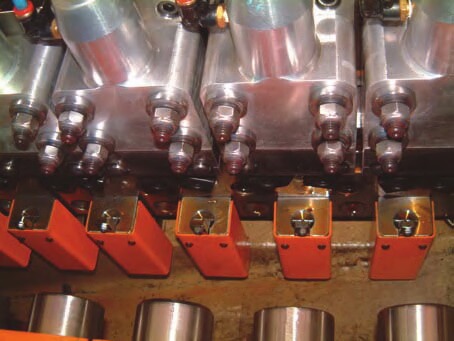

    PFAS MECHANISM:

    PFAS (Parts Forming Assist System) has been developed for secure transfer support of blanks like short shank parts which are difficult to chuck properly.

  • CONVEYOR
    E. BP19B-6S

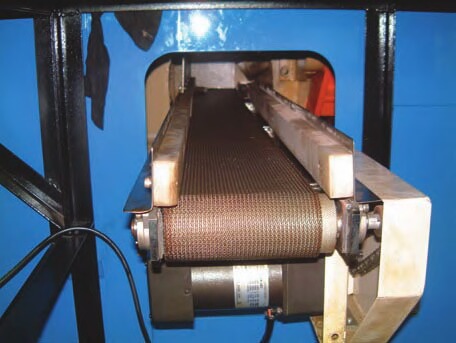

    CONVEYOR:

    Adding the 7th chuck finger to clamp the formed blank on specific conveyor, it prevent the damage in surface of the parts.

  • TRANSMISSION
    F. BP19B-6S

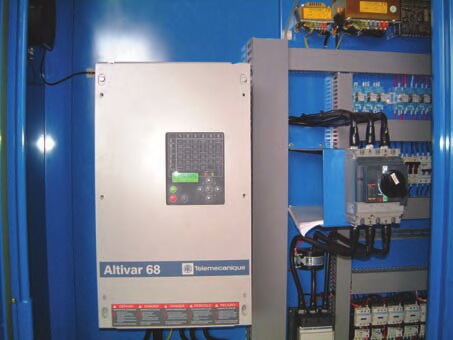

    TRANSMISSION:

    A-C main motor with transistor inverter, it helps to reach the production speed in the position which can reduce production costs.

  • FEED LENGTH ADJUSTING SYSTEM
    G. BP19B-6S

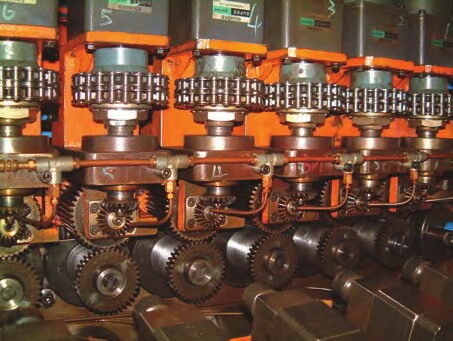

    FEED LENGTH ADJUSTING SYSTEM:

    According to customer’s need, feed length can be adjusted by the servo motor adjusting system.(Optional)

  • STOPPER LENGTH MECHANISM
    H. BP19B-6S

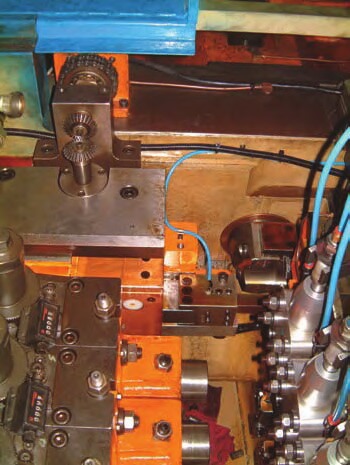

    STOPPER LENGTH MECHANISM:

    According to customer’s need, stopper length can be adjusted by the servo motor system.(Optional)

Specification

SPECIFICATION MODEL BP10B-6S BP11B-6S BP13B-6S BP17B-6S BP19B-6S
FORGING STATION 6 6 6 6 6
NO. OF FINGER'S 6 6 7 7 7
CUT-OFF DIA (MAX) (MM) 12 16 16 18 23
CUT-OFF LENGTH (MIX) (MAX) (MM) 105 130 15/135 20/190 20/165
KICK-OUT LENGTH (MIX) (MAX) (MM) 80(40) 120(40) 120/40 150/50 150/50
PUNCH KICK-OUT LENGTH (MAX) (MM) 20 30 20.35.50 35 20.35.50
CUT-OFF QUILL (DIA x LENGTH) (MM) 35X56 46X80 46x80 46x100 68x100
MAIN DIE (DIA x LENGTH) (MM) 50x95 60x130 75x130 80x170 100x165
CENTER DISTANCE BETWEEN DIES(MM) 60 75 87 93 114
PUNCH HOLE (DIA x LENGTH) (MM) 40x95 40x111 60x120 60x122 75x142
RAM STROKE (MM) 160 190 190 260 260
FORGING POWER (TON) 80 90 145 160 230
OUTPUT PCS/MINUTE (MAX) 180 130 120 110 90
MAIN MOTOR (HP) 30 30 40 50 75
LUBRICATION MOTOR (HP) 1 1 1 2 2
COOLING MOTOR (HP) 1/2 1 1 1 1
LUBRICATION (L) 200 200 200 300 800
COOLANT (L) 300 300 300 400 600
APPROX.WT (KG) 15000 18000 25000 42000 52000
SPECIFICATION MODEL BP24B-6S BP30B-6S BP33B-6S BP36B-6S
FORGING STATION 6 6 6 6
NO. OF FINGER'S 7 7 7 7
CUT-OFF DIA (MAX) (MM) 30 34 38 41
CUT-OFF LENGTH (MIX) (MAX) (MM) 30/200 40/270 45/330 50/410
KICK-OUT LENGTH (MIX) (MAX) (MM) 160/80 220/80 280/100 370/170
PUNCH KICK-OUT LENGTH (MAX) (MM) 20.40.60 25.50.75 25.55.80 30.60.90
CUT-OFF QUILL (DIA x LENGTH) (MM) 95x120 100x120 105x140 115x155L
MAIN DIE (DIA x LENGTH) (MM) 116x184 125x240 145x300 160x400
CENTER DISTANCE BETWEEN DIES 126 138 156 174
PUNCH HOLE (DIA x LENGTH) (MM) 95x176 100x220 110x250 120x290
RAM STROKE (MM) 320 360 440 520
FORGING POWER (TON) 320 440 500 700
OUTPUT PCS/MINUTE (MAX) 90 70 60 50
MAIN MOTOR (HP) 100 125 150 175
LUBRICATION MOTOR (HP) 2 2 2 x 2 2 x 2
COOLING MOTOR (HP) 1 1 1 1
LUBRICATION (L) 800 900 950 1000
COOLANT (L) 600 700 700 950
APPROX.WT (KG) 65000 100000 130000 180000

* WE RESERVE THE RIGHT TO CHANGE THE DESIGNS & SPECIFICATIONS WITHOUT NOTICE.

Video

BP24B-6S
6 Stations Special Part Former
